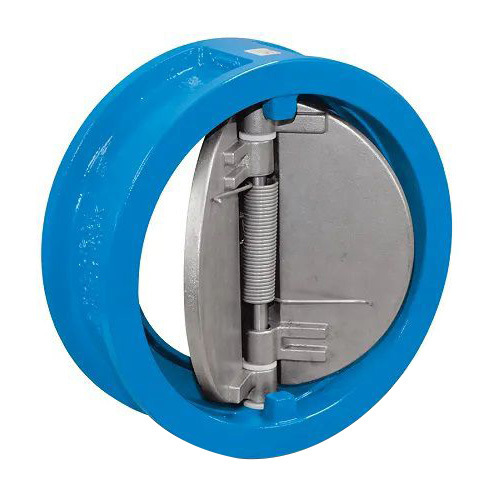

Dual Plate Check Valve

Get a Price/Quote

MOQ : 1 Unit

Dual Plate Check Valve Specification

Application
Water Treatment, HVAC, Petrochemical, Power Plants, Oil & Gas

Connecting Type
Wafer Type Flanged

Sealing
EPDM, NBR, PTFE, Metal to Metal

Material
Cast Iron, WCB (Carbon Steel), Stainless Steel

Power
Manual (Non-actuated)

Structure
Dual Plate / Wafer Type

Pressure
ANSI Class 150, 300, 600 or as specified

Temperature
-10C to 180C (varies by material)

Media
Water, Oil, Gas, Steam, Chemicals

Port Size
2 to 24 (DN50 to DN600)

Disc Material
Stainless Steel, Duplex Steel, or Alloy Steel

Brand/Manufacturer
As per client specification / Manufacturer standard

Test Standard
API 598 / EN 12266

Flow Direction
Uni-directional

Leakage Class
Class VI (Soft Seat), Class III (Metal Seat)

Operation
Non-return, Spring Loaded Plates

Body Coating
Fusion Bonded Epoxy / Painted

Mounting Position
Horizontal or Vertical

End Connection Standard
ANSI, DIN, JIS compatible

Face to Face Standard
API 594 / DIN EN 558-1

Weight
Varies with size, e.g. approx. 6 kg (2") to 130 kg (24")

Dual Plate Check Valve Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Dual Plate Check Valve

Unlock exclusive performance with this Dual Plate Check Valve, expertly engineered for inestimable reliability in a wide range of critical applications. Manufactured with highlighted features like fusion bonded epoxy coating, soft or metal seats (Class III-VI leakage protection), and spring-loaded dual plates, it ensures astonishing flow control. Designed for uni-directional, non-return service and compatible with ANSI, DIN, and JIS standards, this pivotal valve is suitable for mounting in both horizontal and vertical positions. Enjoy discounted market value from top Indian distributors and tailored options to match your specification.

Versatile Application & Key Features of Dual Plate Check Valve

The Dual Plate Check Valve is pivotal in sectors such as water treatment, HVAC, petrochemical, power plants, and oil & gas industries. This versatile valve facilitates uni-directional, non-return flow control and can be mounted horizontally or vertically. Its inestimable compatibility with different end standards and premium sealing materials (EPDM, NBR, PTFE, or metal) ensures lasting reliability and suitable use across water, oil, gas, steam, and chemical media.

Sample Policy, Packaging, and Payment Flexibility

Our dual plate check valve sample policy is designed to assure market value at the lowest price for bulk and customized orders. Each valve is carefully packaged to prevent damage during transit, maintaining its astonishing quality upon delivery. We offer a spectrum of payment terms that cater to your requirements, whether you're a distributor, supplier, or end-user. Benefit from secure, transparent processes and reliable logistics when you partner with India's trusted suppliers.

FAQ's of Dual Plate Check Valve:

Q: How does a dual plate check valve operate in different orientations?

A: The dual plate check valve is designed to operate effectively in both horizontal and vertical positions, ensuring non-return, uni-directional flow by using spring-loaded plates that prevent backflow, regardless of mounting orientation.

Q: What is the compatibility range of end connection standards for this check valve?

A: This valve is engineered to support ANSI, DIN, and JIS standards, making it adaptable to diverse piping systems and international installation requirements.

Q: Where can the dual plate check valve be used?

A: It finds inestimable application in water treatment, HVAC systems, petrochemical plants, power generation, and the oil & gas industry, providing reliable sealing and flow control in various fluid handling operations.

Q: What materials are available for disc and body construction?

A: Options include stainless steel, duplex steel, or alloy steel for the disc, while the body can be manufactured from cast iron, carbon steel (WCB), or stainless steel, tailored to client specifications or manufacturer standards.

Q: What benefits does the soft seat and metal seat leakage class offer?

A: Class VI (soft seat) and Class III (metal seat) classifications ensure optimal sealing based on media and application demands, offering both high tightness and durability against inestimable pressure or temperature variations.

Q: What is the process for sourcing and purchasing this check valve?

A: Interested buyers can request samples, confirm packaging preferences, and negotiate payment terms with leading Indian distributors, manufacturers, and suppliers, ensuring an exclusive and discounted market experience.
