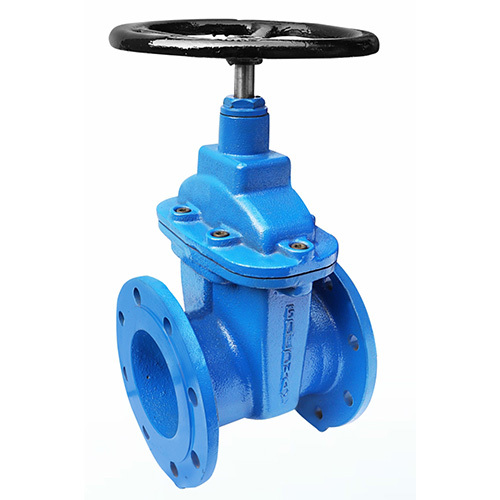

DI Soft Seated Valve 100mm

Price 3600.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

DI Soft Seated Valve 100mm Specification

Structure
Resilient Wedge Gate Valve

Material
Ductile Iron (DI)

Power
Manual

Pressure
PN10/PN16

Media
Water, Non-corrosive Liquids

Port Size
DN50 to DN600

Surface
Fusion Bonded Epoxy Coated

Shape
Round/Flanged

Application
Water Supply, Sewage, Fire Fighting, Irrigation Systems

Bonnet
Bolted Bonnet Construction

Gasket
EPDM Rubber

Body Test Pressure
1.5 x PN

Coating Thickness
Minimum 250 microns

Face to Face Dimension
EN 558 Series 14

Sealing
Soft Seated

Operation
Handwheel or Gearbox

Connection Ends
Flanged according to EN 1092-2

Seat Test Pressure
1.1 x PN

DI Soft Seated Valve 100mm Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About DI Soft Seated Valve 100mm

D.I. Soft Seated Valves are designed for efficient flow control and positive shut-off in water supply, wastewater, and general utility applications. Manufactured from high-grade ductile iron and fitted with resilient soft seats, these valves ensure bubble-tight sealing, smooth operation, and long-term reliability.

FEATURES

Ductile iron body for high strength and durability
Soft seated design for zero leakage shut-off
EPDM/NBR rubber seat for superior sealing
Low operating torque for smooth operation
Bi-directional sealing capability
Corrosion-resistant epoxy coating
Replaceable soft seat for easy maintenance
Compact and lightweight construction

APPLICATION

Leak-proof performance
Easy installation and maintenance
Cost-effective solution

PARTS NAME	MATERIAL	SPECIFICATION
Body, Bonnet, Gland & Thrust Plate	Ductile Iron	SG. 500/7
Wedge & Stuffing Box	Ductile Iron	SG. 500/7
Handwheel	Ductile Iron	SG. 500/7
Stem	Stainless Steel	IS: 7604
Bolts & Nuts	Carbon Steel	IS: 1363
Wedge Nut	Bronze	IS: 318 Gr. LTB 2
Body Seat	EPDM Rubber	IS: 638 Typ
Gland Packing	Jute/Hamp	IS: 5414
Gasket	Rubber	IS: 638 Typ

VALVES SIZE	50	65	80	100	125	150	200	250	300	350	400	450	500	600
Length over Flanges	178	190	203	229	254	267	292	330	356	381	406	432	45	508
Flange Dia	165	185	200	220	250	285	340	395	445	505	565	615	670	780
P.C.D.	125	145	160	180	210	240	295	350	400	460	515	565	620	725
Flange Thickness	16	16	21	22	22.5	23	24.5	26	27.5	29	30	32	33	36
Hole Dia	19	19	19	19	19	23	23	23	23	23	28	28	28	31
No. of Holes	4	4	4	8	8	8	8	12	12	16	16	20	20	20

Introducing the DI Soft Seated Valve, the must-have champion for water supply, sewage, fire fighting, and irrigation systems. Designed with resplendent reliability, this matchless valve offers a special rate with the best price in India. Engineered from robust ductile iron and coated with a minimum 250 micron fusion bonded epoxy, it guarantees superior protection and longevity. Featuring EPDM rubber gaskets, bolted bonnet construction, and soft seated sealing, it delivers consistent performance. Available in DN50 to DN600 port sizes, it operates manually via handwheel or gearbox, meeting stringent EN 1092-2 and EN 558 Series 14 standards.

Versatile Application for Every Industry

Perfectly suited for a wide array of uses, the DI Soft Seated Valve ensures optimal flow in water supply, sewage, fire fighting, and irrigation systems. Its application surface is resilient and corrosion-resistant, while the robust design supports both above-ground and buried installations. This valve is the ideal choice for industrial, municipal, and agricultural sectors, tailored to handle water and other non-corrosive liquids efficiently.

Premium Distribution and Trusted Logistics

Serving the main domestic market across India, this premium DI Soft Seated Valve is made available to distributors, suppliers, and manufacturers with exceptional sample policy options. Packaged securely to protect the integrity of every valve, orders are swiftly dispatched using reliable logistics partners. Experience hassle-free purchase, safe delivery, and dedicated support as each product meets the highest standards for quality and performance.

FAQ's of DI Soft Seated Valve:

Q: How does the DI Soft Seated Valve benefit water supply and sewage applications?

A: The DI Soft Seated Valve offers reliable and leak-free operation in water supply and sewage systems, thanks to its soft sealing, robust ductile iron construction, and corrosion-resistant coating.

Q: What are the connection ends and standards followed by this valve?

A: This valve comes with flanged connection ends, manufactured according to EN 1092-2, and adheres to EN 558 Series 14 for face-to-face dimensions, ensuring universal compatibility.

Q: Where can the DI Soft Seated Valve be used?

A: It is versatile enough to be used in water supply, sewage, fire fighting, and irrigation systems, making it suitable for both municipal and industrial applications.

Q: What is the process of packaging and dispatching the valve?

A: Each valve is packaged securely to prevent transit damage and dispatched promptly through trusted logistics partners, ensuring timely delivery to distributors and suppliers.

Q: When should I consider manual operation versus gearbox operation?

A: Manual operation via handwheel is ideal for smaller port sizes or infrequent use, whereas the gearbox option is recommended for larger sizes or frequent, heavy-duty operation.
