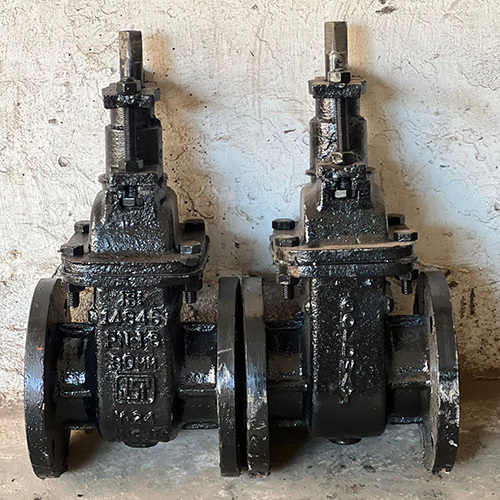

CI Sluice Valve

Get a Price/Quote

MOQ : 1 Piece

CI Sluice Valve Specification

Structure
Gate Type

Material
Cast Iron (CI)

Power
Manual

Pressure
PN 1.0 to PN 1.6 MPa

Media
Water, Wastewater

Port Size
50 mm to 600 mm

Surface
Red Oxide Primer/Blue Epoxy Coated

Shape
Round/Flanged

Application
Water Supply, Sewage, Fire Fighting Systems

Bonnet Type
Bolted Bonnet

Body Test Pressure
2.4 MPa

Standard
IS: 14846

Seat Test Pressure
1.6 MPa

Sealing
Rubber/Metal Seated

Coating Thickness
70 Microns Epoxy

Operation
Handwheel or Cap

Stem Type
Non-Rising/Inside Screw

End Connection
Flanged as per IS: 1538

CI Sluice Valve Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About CI Sluice Valve

C.l. Sluice Valves are designed to regulate and isolate the flow of water in pipelines. Manufactured in strict compliance with IS:14846-2000, these valves ensure reliable performance, durability, and smooth operation. They are suitable for clear water and neutral liquids, widely used in water supply, irrigation, and industrial pipeline systems.

FEATURES

100% leak-tight sealing for reliable flow isolation
Durable construction ensuring long service life
Low operating torque for smooth valve movement
Replaceable components for easy maintenance
Corrosion-resistant internal and external coatings
Available with both rising and non-rising spindle options
Suitable for buried or above-ground installation

PARTS NAME	MATERIAL	SPECIFICATION
Body, Bonet, Stuffing box, Gland Trust plate, Handwheel	Grey Cast Iron	IS: 210 FG 200
Body Rings, Wedge nut Wedge facing Rings	Bronze	IS: 318 LTB 2
Spindle	Stainless Steel	IS: 6603 IS:12 Cr12
Gaskets	Rubber	IS: 638 Type
Gland Packing	Asbestos	IS: 4687

TESTING AND CERTIFICATE All valves are tested to the Hydraulic pressures recommended by IS:14846 and as detailed below. Test certificates duly signed by quality control engineer are issued for all the valves

Nom. Pressure Rating	HYDRAULIC TEST PRESSURE BODY	HYDRAULIC TEST PRESSURE SEAT
PN 1.0	1.5 Mpa	1.0 Mpa
PN 1.6	2.4 Mpa	1.6 Mpa

DIMENSIONS in mm

VALVES SIZE	50	65	80	100	125	150	200	250	300	350	400	450	500	600
Length over Flanges PD Alt II	178	190	203	229	254	267	292	330	356	381	406	432	457	508
	215	230	230	255	266	280	318	355	380	690	750	820	880	1000
Overall Height	365	380	425	470	485	595	725	835	910	1030	1110	1210	1340	1500
Dia of Hand wheell PN 1.0	225	225	225	320	320	320	360	400	400	500	640	720	720	720
Dia of Hand wheell PN 1.6	280	280	280	360	360	360	450	640	640	640	730	800	800	800
Flange Thickness PN 1.6	16	16	21	22	22.5	23	24.5	26	27.5	29	30	32	33	36
Flange Dia	165	185	200	220	250	285	340	395	445	505	565	615	670	780
P.c.d Of Holes PN 1.6	125	145	160	180	210	240	295	350	400	460	513	565	620	725
Dia of Hole PN 1.6	19	19	19	19	19	23	23	23	23	23	28	28	28	31
Hole Nos. PN 1.6	4	4	4	8	8	8	8	12	12	16	16	20	20	20

Purchase the featured CI Sluice Valve with End Connection: Flanged as per IS: 1538, setting a prodigious benchmark in water control applications. Popular among engineers and operators, this brilliant valve is crafted from cast iron and conforms to IS: 14846 standards, guaranteeing robust, ace performance. It supports versatile operation via handwheel or cap, and offers rubber or metal sealing for leak-proof assurance. With a bolted bonnet, non-rising stem, and blue epoxy coating, this valve excels under seat pressures up to 1.6 MPa. Choose from a broad port size range-50 mm to 600 mm.

CI Sluice Valve: Plant Application & Competitive Advantages

The CI Sluice Valve proves indispensable in industrial and municipal plants for water supply, sewage, and fire fighting systems. Its sturdy, blue epoxy-coated surface offers exceptional corrosion resistance, ensuring longevity in demanding environments. Featuring round, flanged ports and robust construction, these valves provide a competitive ace advantage by minimizing leakage and maintenance. Their adaptability to various surfaces and ease of operation, even under high pressure, make them a brilliant choice for diverse water management infrastructures.

CI Sluice Valve: Sample Policy, Export & Domestic Supply

Availing a sample CI Sluice Valve is streamlined, with Express Shipping options for quick rate confirmation and delivery. As featured manufacturers, distributors, and suppliers, we serve a broad export clientele across the globe as well as ace supply in India's main domestic markets. Our proficient network ensures timely supply, responding to varying project scales with prodigious expertise. Experience our brilliant product sampling and affordable rates, making procurement seamless and customer-centric.

FAQ's of CI Sluice Valve:

Q: How is the CI Sluice Valve typically operated?

A: The CI Sluice Valve can be operated manually using a handwheel or cap, enabling simple and efficient flow regulation in pipelines.

Q: What are the main applications for this valve?

A: This valve is extensively used in water supply, sewage, and fire fighting systems, making it highly versatile across municipal and industrial infrastructures.

Q: Where can these valves be installed?

A: These valves are suitable for installation in water distribution networks, wastewater plants, and fire protection systems, thanks to their robust construction and corrosion-resistant coating.

Q: What is the advantage of the blue epoxy coating on the valve?

A: The blue epoxy coating, with a thickness of 70 microns, offers brilliant corrosion resistance and enhances the valve's lifespan, making it ideal for harsh environments.

Q: When should I select a rubber-seated versus metal-seated sluice valve?

A: Rubber-seated valves are preferable for a tighter seal in clean water applications, whereas metal-seated versions are recommended for higher temperature or abrasive media.

Q: What is the process to request a sample valve?

A: You can request a sample by contacting our sales team. We offer express shipping and will provide rates promptly to streamline your product evaluation and procurement process.
